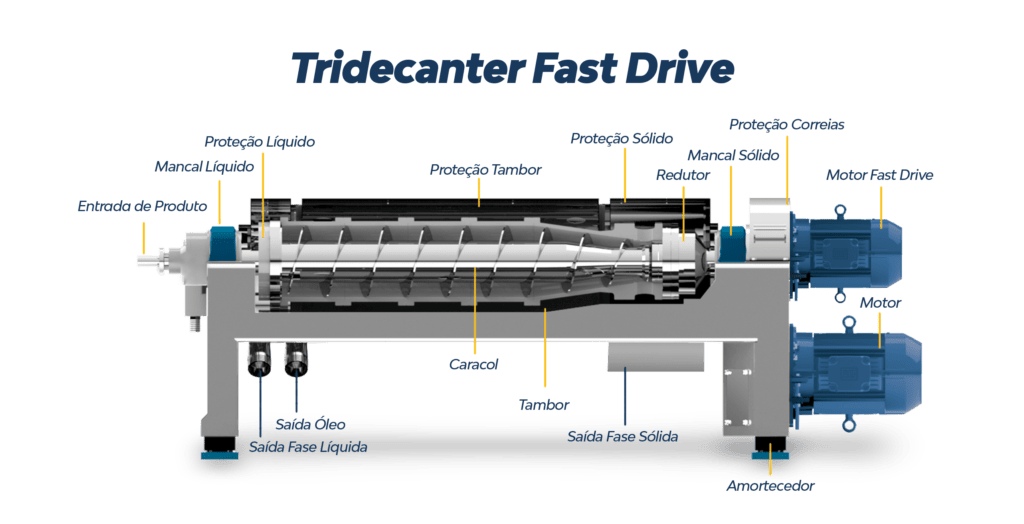

Product: Fast Drive Cetrifugal Tridecanter

 5/5

View equipment information

Capacity:

Applications

Municipal Sewage Treatment Plants (STP) and industrial effluents, Water Treatment Plants (ETA),), refrigerators, olive oil, mining, paper and cellulose, Fast Grain (cereal ethanol), dairy products, drinks, açaí, avocado oil, among others.

Equipment information

When the parameters of the phase separation process vary greatly, the system Fast Drive is strongly recommended. The automation technology developed exclusively by Fast, with the use of individual motors for the drum and screw, allows automatic speed control. An intelligent equipment monitoring system ensures total efficiency in phase separation, absorbing variations in solid loads of processed products in various segments, offering numerous advantages.

Advantages

Automatic control of the rotation differential between the drum and the screw, without the need for mechanical interventions;
Quick adaptation to variations in solid input and output;
It has a regenerative energy system – reduces energy consumption by up to 30% compared to conventional equipment;
Fully automated electrical part;
High profitability through the continuously high value of dry matter (ST = the higher this value, the drier the discharged solid will be);
Centrifugal force can reach up to 4500G, depending on the model and application;
Low maintenance cost;
High performance with solids concentration in the solid phase of up to 30%.
Regenerative energy system: energy recovery up to 30%;
High flexibility in choosing operating rotation;
Drum rotation and differential speed are easy to control, as they are independent of each other;
The machine can be emptied (unloaded) even when stopped, as the screw can continue to rotate without the need to disassemble system components;
Allows selection of differential or torque mode on touch through selection on the HMI;
Torque monitoring and alarms;
Feed pump control;
Current readings;
Automatic sanitization with intelligent wash cycles;
Quick adaptation to variations in solid input and output;
Simple display and adjustment of screw conveyor torque, including overload protection;
Quick adjustment and control by varying drum and differential rotation;
Large production capacity;
High profitability;
Reduced space and installation work;
Easy and quick assembly.

Differentials

The Decanter Fast is the only fully automated machine on the national market. The equipment's PLC (Programmable Logic Controller) manages the following machine parameters:

Feeding pump;
Motor and snail rotation;
Rotation ratio between the snail and the cylinder;
Equalization of the machine's production capacity with the total solids level of the product to be centrifuged from the main motor current, modulating the feed pump frequency inverter;
Automatic machine sanitization process;
The diagnosis indicates failures in the PLC;
Adequate rotation differential between the drum and the auger (conveyor screw) for the product to be processed;

Driven by an electric motor controlled by a frequency inverter, attenuating current and voltage peaks at start-up, enabling RPM control and equipment protection against mechanical overloads, in addition to energy savings.

Processes

Table

FD Models	Comp. (mm)	Width (mm)	Height (mm)
MARS FD 3	2355	625	785
MARS FD 4	2610	625	840
URANUS FD 3	3130	765	950
URANUS FD 4	3500	765	955
SATURN FD 3	4035	975	1220
SATURN FD 4	4510	975	1220
JUPITER FD 3	4970	1315	1645
JUPITER FD 4	5565	1215	1580
APOLLO 3	6140	1405	1720

Photos

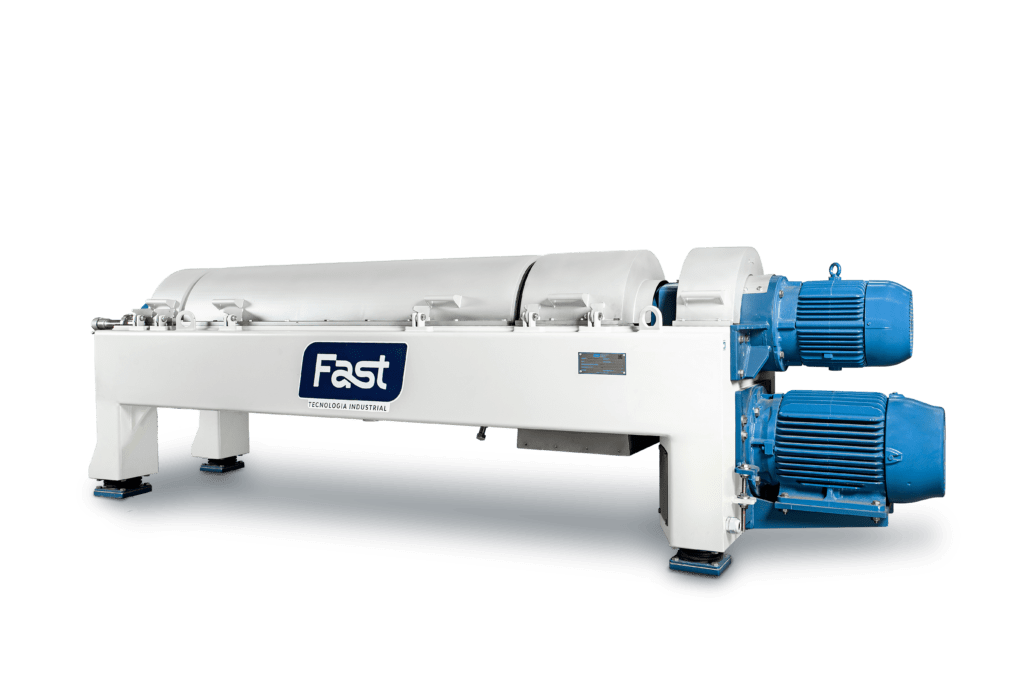

Product: Fast Drive Cetrifugal Tridecanter
