Decanter Centrifugal

Phase Separation

Product: Tridecanter Centrifugal

5/5

View equipment information

Capacity:

Phase Separation

Municipal Sewage Treatment Plants (STP) and industrial effluents, Water Treatment Plants (ETA), refrigerators, olive oil, mining, paper and cellulose, Fast Grain (cereal ethanol), dairy products, drinks, açaí, avocado oil, among others.

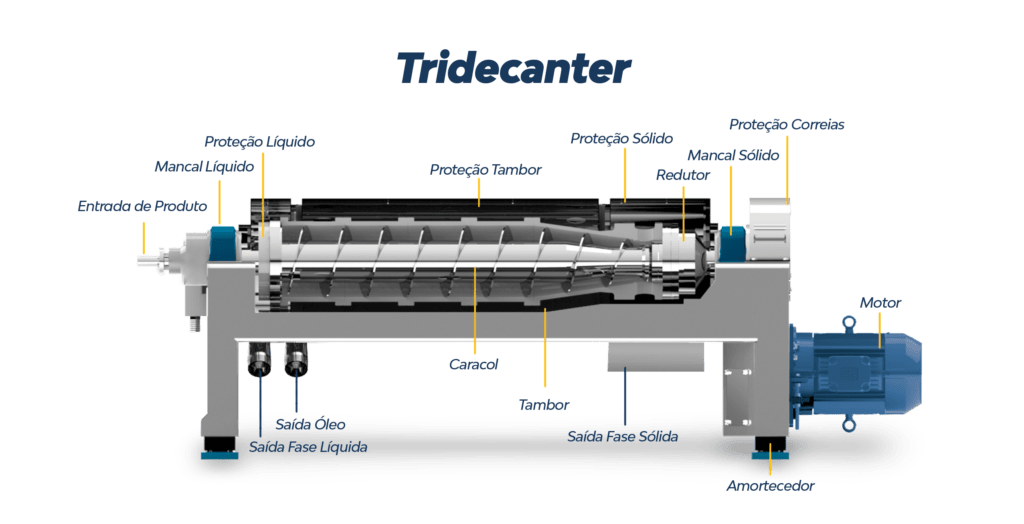

The Fast tridecanter centrifuge is the only high-performance centrifuge on the national market. It is the most suitable equipment for separating three phases of different specific weights, generally solid, oil and liquid.

Performing continuous, uninterrupted and fully controlled work through a control panel equipped with a modern HMI and PLC, the tridecanter centrifuge is highly efficient in separating mixtures and recovering processed substances for reuse. It is widely used in dehydrating sludge, separating oils or recovering processed substances.

With a team of specialized technicians, Fast designs, produces, installs and offers technical assistance for decanters manufactured in its own factory. In addition, Fast also refurbishes and maintains any other brand or model of decanter.
  • High efficiency in phase separation;
  • Excellent efficiency in oil recovery;
  • Control of the percentage of moisture in the solid product and fines in the liquid product;
  • Electronic and mechanical protection against over-powering and overloading;
  • Automatic solid product remover;
  • Best cost-benefit;
  • Lower installed power;
  • Saving electrical energy;
  • National 100% equipment;
  • • Automatic equipment sanitization system incorporated into the electrical panel.
  • • Electrical panel built in accordance with strict safety standards.
  • • Robust equipment with low maintenance requirements.
  • • The coating material against wear or erosion is determined according to the application for which the equipment will be intended.

The Fast decanter is the only one on the national market that is fully automated. The equipment's PLC manages the following machine parameters:

  • Feeding pump;
  • Motor and snail rotation;
  • Rotation ratio between the snail and the cylinder;
  • Equalization of the machine's production capacity with the total solids level of the product to be centrifuged from the main motor current, modulating the feed pump frequency inverter;
  • Automatic machine sanitization process;
  • Diagnostics allow faults to be detected in the PLC;
  • Adequate rotation differential between the drum and the auger (conveyor screw) for the product to be processed;
  • Driven by an electric motor controlled by a frequency inverter, attenuating current and voltage peaks at start-up, enabling RPM control and equipment protection against mechanical overloads, in addition to energy savings.



FD Models

Comp.

(mm)

Width

(mm)

Height

(mm)

MARS 3

2355

625

785

MARS 4

2610

625

840

URANUS 3

3130

765

950

URANUS 4

3500

765

955

SATURN 3

4035

975

1220

SATURN 4

4510

975

1220

JUPITER 3

4970

1315

1645

JUPITER 4

5565

1215

1580

APOLLO 3

6140

1405

1720
